| หมวดหมู่: | Travel Motor และ Final Drive | รุ่นเครื่อง: | PC270LL PC300 PC350HD PC390 PC400 |
|---|---|---|---|
| แอพลิออน: | รถขุด | ชื่อสินค้า: | เพลา |
| หมายเลขชิ้นส่วน: | 706-8J-41280 7068J41280 | การบรรจุ: | กล่องส่งออกมาตรฐาน |
| เน้น: | Komatsu excavator center shaft,PC270LL excavator spare parts,PC350HD travel motor parts |
||
| Name | Shaft |
| Parts No | 706-8J-41280 7068J41280 |
| Machine Model | PC270LL PC300 PC300HD PC300LL PC350HD PC390 PC400 |
| Category | Travel Motor And Final Drive |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |

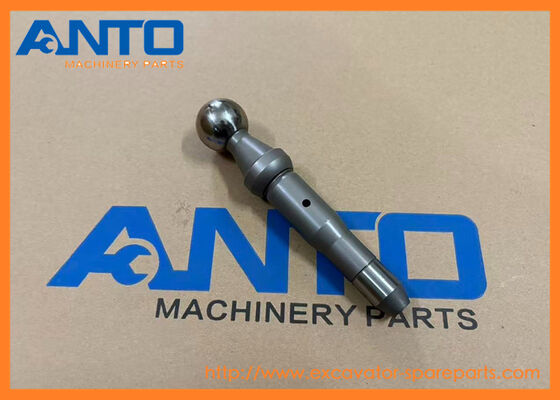

| 1.It is the central rotating core of travel motor, transfers hydraulic driving torque from motor cylinder block to final drive reduction gear set. |
| 2.Fixes piston assembly, retainer and related internal spare parts as central positioning support during high-speed rotation. |
| 3.Bears radial load and torsional force to keep concentric running of whole travel motor, controls track walking power output of excavator. |
EXCAVATORS PC270LL PC300 PC300HD PC300LL PC350HD PC350LL PC390 PC390LL PC400 PC450 PC490 PC550 Komatsu
| 417-43-27120 SHAFT |
| AIR, BATTERY, FRONT, HYDRAULIC, WA150, WA150PZ, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380, WA430, WA470, WA480, WA500 |
| 419-17-32121 SHAFT |
| FRONT, WA320, WA320L, WA320PT, WA320PZ |
| 418-43-38131 SHAFT |
| BATTERY, FRONT, WA150, WA150PZ, WA200, WA200PZ, WA250PZ, WA320, WA320PZ |
| 6732-41-5130 SHAFT ASS'Y |
| 6D102, S4D102E, S6D102E, S6D102E1, SA4D102E, SAA4D102E, WA150, WA150PZ, WA320 |
| 708-7R-12210 SHAFT |
| BATTERY, D31EX, D31PX, D37EX, D37PX, D39EX, D39PX, D41E, D41P, D51EX/PX, FRONT, HM300, HM400, WA100, WA150, WA150PZ, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ |
| 418-43-A1450 SHAFT |
| WA250, WA320 |
| 419-17-32122 SHAFT |
| FRONT, WA320, WA320PZ |
| 419-22-32411 SHAFT |
| FRONT, WA320, WA320PZ |
| ND116662-0581 SHAFT |
| WA100, WA100M, WA120, WA1200, WA120L, WA150, WA180, WA180L, WA180PT, WA200, WA250, WA250L, WA250PT, WA300, WA300L, WA320, WA350, WA380, WA400, WA420, WA450, WA450L, WA470, WA480, WA500, WA600, WA700, ... |
| 362-15-00140 SHAFT ASS'Y |
| WA30 |
| 395184012 Shaft |
| WB91R, WB93R, WB97R |
| 1239 809 H1 SHAFT, ACCESSORY DRIVE |
| KOMATSU |
| 1239 231 H1 SHAFT,THROTTLE |
| KOMATSU |
| 3FE-21-13230 SHAFT |
| FD100, FD115, FD135, FD150E, FD160E |
| 419-22-22720 SHAFT |
| FRONT, WA300, WA300L, WA320, WA320L, WA320PT, WA320PZ |
| YM158601-61390 SHAFT |
| 3D82AE, 3D84E, 4D88E, S3D84, WB93R, WB97R, WB97S |
| 130-961-2520 SHAFT |
| D40AM, D50A, D50P |
| 561-15-62510 SHAFT |
| HD325, HD465, HD605 |
| Pos. | Part No | Qty | Parts name | Comments |
| 208-27-00312 | [2] | Final Drive Assembly Komatsu | 750 kg. | |
| ["SN: 70788-UP"] analogs:["2082700242", "2082700241", "2082700240", "2082700243", "2082700311"] |$0. | ||||
| 208-27-00311 | [2] | Final Drive Assembly Komatsu | 750 kg. | |
| ["SN: 70724-70787"] analogs:["2082700242", "2082700241", "2082700240", "2082700243", "2082700312"] |$1. | ||||
| 208-27-00243 | [2] | Final Drive Assembly Komatsu | 750 kg. | |
| ["SN: 70001-70723", "SCC: A2"] analogs:["2082700242", "2082700241", "2082700240", "2082700312", "2082700311"] |$2. | ||||
| 706-8J-01030 | [1] | Motor Assembly Komatsu OEM | 220 kg. | |
| ["SN: 70788-UP"] analogs:["7068J01011", "7068J01012", "7068J01031", "R7068J01031"] |$3. | ||||
| 706-8J-01012 | [1] | Motor Assembly Komatsu OEM | 220 kg. | |
| ["SN: 70001-70787"] analogs:["7068J01011", "7068J01030", "7068J01031"] |$4. | ||||
| 1 | 706-8J-41610 | [1] | Shaft, Drive, Drive Komatsu | 6.402 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 2 | 706-8J-41010 | [1] | Bearing Komatsu | 8.22 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 3 | 706-77-42890 | [1] | Bearing Komatsu | 1.185 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 4 | 706-8J-41810 | [1] | Retainer Komatsu | 1.09 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 5 | 706-8J-41660 | [1] | Spacer Kit Komatsu | 0.23 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 6 | 04064-06525 | [1] | Ring, Snap, for Shaft Side Komatsu China | 0.021 kg. |
| ["SN: 70001-UP"] | ||||
| 7 | 706-8J-41620 | [1] | Seal, Oil Komatsu | 0.15 kg. |
| ["SN: 70001-UP"] analogs:["7068J42330"] | ||||
| 8 | 706-8J-41820 | [1] | Spacer Komatsu | 0.12 kg. |
| ["SN: 70001-UP"] | ||||
| 9 | 04065-09030 | [1] | Ring, Snap Komatsu | 0.03 kg. |
| ["SN: 70001-UP", "SCC: C2"] analogs:["2324013250", "R0406509030"] | ||||
| 10 | 706-8J-41280 | [1] | Shaft Komatsu OEM | 1.91 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 11 | 706-8J-41270 | [1] | Ring Komatsu | 0.26 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 12 | 706-8J-41290 | [1] | Spring Komatsu | 0.38 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 13 | 706-8J-41260 | [1] | Retainer Komatsu OEM | 2.22 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 14 | 708-23-12350 | [7] | Screw Komatsu | 0.008 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 15 | 706-8J-42170 | [7] | Piston Subassembly Komatsu OEM | 0.000 kg. |
| ["SN: 70788-UP", "SCC: C2"] | ||||
| 15 | 706-8J-41161 | [7] | Piston Subassembly Komatsu OEM | 0.36 kg. |
| ["SN: 70001-70787", "SCC: C2"] | ||||
| 16 | 706-7K-91340 | [5] | Plate Komatsu | 1 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 17 | 706-7K-91350 | [4] | Disc Komatsu | 0.24 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 18 | 706-8J-91110 | [1] | Piston Komatsu | 9.802 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 19 | 07000-15230 | [1] | O-ring Komatsu China | 0.03 kg. |
| ["SN: 70001-UP", "SCC: C2"] analogs:["0700005230"] | ||||
| 20 | 07001-05230 | [1] | Ring, Back-up Komatsu | 0.016 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 21 | 708-8H-15220 | [1] | O-ring Komatsu | 0.025 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 22 | 706-8J-91120 | [1] | Ring, Back-up Komatsu | 0.02 kg. |
| ["SN: 70001-UP", "SCC: C2"] | ||||
| 23 | 706-8J-91130 | [6] | Spring Komatsu | 0.24 kg. |
| ["SN: 70001-UP", "SCC: C2"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
