รายละเอียดสินค้า:
การชำระเงิน:
|
| หมวดหมู่: | มอเตอร์แกว่ง | หมายเลขชิ้นส่วน: | XKAY-01904 XKAY01904 |
|---|---|---|---|
| ชื่อผลิตภัณฑ์: | ชุดซีล | เลขเครื่อง: | R520lc-9s |
| ใบสมัคร: | เครื่องขุด | เวลานำ: | 1-3 วันสำหรับการจัดส่ง |
| การบรรจุหีบห่อ: | กล่องส่งออกมาตรฐาน | ||
| เน้น: | HYUNDAI Excavator Seal Kit,Excavator Swing Motor Seal Kit,R520LC-9S Spare Parts Seal Kit |
||

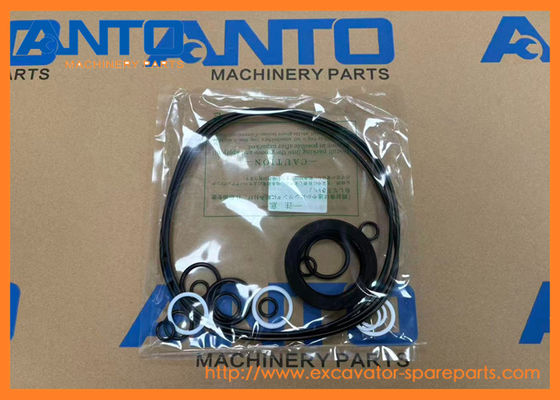

XKAY-01904 XKAY01904 Seal Kit HYUNDAI Excavator Spare Parts Fitting For R520LC-9S
Specifiion
| Category | Swing Motor |
| Name | Seal Kit |
| Parts No | XKAY-01904 XKAY01904 |
| Machine Number | R520LC-9S |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Power Transmission: Transports high-pressure hydraulic oil to convert hydraulic energy into mechanical energy, enabling core machine movements (e.g., excavator boom lifting, loader bucket tilting, dump truck bed raising).
2.System Integrity: Maintains the hydraulic system’s pressure tightness, preventing oil leaks that would reduce system pressure, waste oil, and increase the risk of component damage.
3.Component Protection: By resisting abrasion, kinking, and chemical degradation, the hose protects the hydraulic system from contamination and pressure loss, extending the lifespan of expensive components like pumps and valves.
4.Environmental Adaptability: Performs reliably in extreme temperatures and harsh conditions, ensuring consistent machine operation in diverse work environments (e.g., desert mines, cold mountain construction sites, or wet agricultural fields).
9-SERIES CRAWLER EXCAVATOR R520LC9S Hyundai
| 3037236 SEAL/O-RING |
| 100D-7, 33HDLL, 42HDLL, H80, HDF50A, HL17C, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL740TM-7, HL750, HL750... |
| 3818885 SEAL/O-RING |
| 42HDLL, HL25C, HL35C, HL760, HL760-3, HL760-3ATM, HL770, HL770-3, HL770-3ATM, HL770-7, R280LC, R290LC, R290LC3, R290LC3LL, R320LC, R320LC3, R360LC3, R450LC3, R450LC7, R480LC9S, R500LC7, R520LC9S, RD51... |
| 11L6-50040 SEAL CLAMP ASSY |
| HL770-7A, HL780-7A, HL780-9, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, R8007AFS, R800LC7A |
| 3084713 SEAL-OIL |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 3033247 SEAL/O-RING |
| HL35C, HL770, HL770-3, HL770-3ATM, HL780-7A, HL780-9, HL780-9A, HL780-9S, HL7803A, R320LC, R360LC3, R450LC3, R450LC3A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9A, R480LC9S, R500LC7, R500LC7A, R520... |
| 3070138 SEAL/O-RING |
| HL780-7A, HL780-9, HL780-9S, HL7803A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC9S, RD510LC-7 |
| 186780 SEAL-THERMOSTAT |
| HL35C, HL770, HL770-3, HL770-3ATM, HL780-3, HL780-7A, HL780-9, HL780-9S, HL7803A, R320LC, R360LC3, R450LC3, R450LC3A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC... |
| 3042401 SEAL-GROMMET |
| HL35C, HL770, HL770-3, HL770-3ATM, HL780-3, HL780-7A, HL780-9, HL780-9S, HL7803A, R320LC, R360LC3, R450LC3, R450LC3A, R450LC7, R450LC7A, R480C9MH, R480LC9, R480LC9S, R500LC7, R500LC7A, R520LC9, R520LC... |
| 21EM-45080 SEAL-OIL |
| 33HDLL, 42HDLL, HW140, HX140L, HX160L, HX180L, HX235L, R110-7, R110-7A, R125LCR-9A, R130LC3, R130W3, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R140W7, R140W7A, R140W9, R140W9A, R140W9S, R145CR... |
| XKAY-00055 SEAL-ROD |
| HL730-9S, HL730-9SB, HL740-9SB, HL757-9SB, HL757-9SM, HL760-9SB, HL770-9S, HL780-9S, HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31QB-18250 | [1] | SWING MOTOR ASSY-LH | LH |
| *. | 31QB-18251 | [1] | SWING MOTOR ASSY-LH | LH |
| *. | 31QB-18251SG8 | [1] | SWING MOTOR ASSY | LH |
| *-1. | 31QB-18160 | [1] | SWING MOTOR UNIT-LH | LH |
| *-1. | 31QB-18160AR | [1] | SWING MOTOR | LH |
| 1 | XKAY-01882 | [1] | BODY | |
| 1 | XKAY-02096 | [1] | BODY | |
| K2. | XKAY-00521 | [1] | SEAL-OIL | |
| 3 | XKAY-00522 | [1] | BEARING-ROLLER | |
| 4 | XKAY-00523 | [1] | RING-SNAP | |
| 5 | XKAY-01317 | [1] | SHAFT | |
| 5 | XKAY-02248 | [1] | SHAFT | |
| 6 | XKAY-00525 | [1] | BUSHING | |
| 7 | XKAY-00526 | [1] | RING-STOP | |
| 8 | XKAY-00625 | [1] | PIN | |
| 9 | XKAY-00527 | [1] | PLATE-SHOE | |
| A. | XKAY-00635 | [1] | ROTARY KIT | |
| A. | XKAY-02162 | [1] | ROTARY KIT | |
| A-A. | XKAY-01893 | [1] | CYLINDER BLOCK KIT | |
| A-A. | XKAY-02163 | [1] | CYLINDER BLOCK KIT | |
| N10. | XKAY-01511 | [1] | BLOCK-CYLINDER | |
| N10. | XKAY-02164 | [1] | BLOCK-CYLINDER | |
| N11. | XKAY-00531 | [9] | SPRING | |
| 24 | XKAY-00544 | [1] | PLATE-VALVE | |
| A-B. | XKAY-00532 | [1] | RETAINER KIT | |
| N12. | XKAY-00533 | [1] | GUIDE-BALL | |
| N13. | XKAY-00534 | [1] | PLATE-SET | |
| A-C. | XKAY-00535 | [1] | PISTON KIT | |
| N14. | XKAY-00536 | [9] | PISTON ASSY | |
| 15 | XKAY-00537 | [3] | PLATE-FRICTION | |
| 16 | XKAY-00538 | [3] | PLATE | |
| 17 | XKAY-00632 | [1] | PISTON-BRAKE | |
| K18. | XKAY-00468 | [1] | O-RING | |
| K19. | XKAY-00540 | [2] | O-RING | |
| 20 | XKAY-00541 | [20] | SPRING | |
| 21 | XKAY-01900 | [1] | COVER-REAR | |
| 22 | XKAY-00543 | [1] | BEARING-NEEDLE | |
| 23 | XKAY-00382 | [2] | PIN | |
| 23 | XKAY-02166 | [2] | PIN | |
| 25 | XKAY-00546 | [4] | BOLT-WRENCH | |
| 26 | XKAY-00309 | [2] | PLUG | |
| K27. | XKAY-00141 | [2] | RING-BACK UP | |
| K28. | XKAY-00310 | [2] | O-RING | |
| 29 | XKAY-00311 | [2] | SPRING | |
| 30 | XKAY-00312 | [2] | CHECK | |
| 31A. | XKAY-01475 | [1] | RELIEF VALVE ASSY | |
| 31B. | XKAY-01476 | [1] | RELIEF VALVE ASSY | |
| 32 | XKAY-00638 | [1] | LEVEL GAUGE | |
| 32-1. | XKAY-02139 | [1] | BAR-GAUGE | NOT SHOWN |
| 32 | XKAY-02249 | [1] | GAUGE-LEVEL | |
| 44 | XKAY-02168 | [1] | LEVEL GAUGE PIPE | |
| 45 | XKAY-02251 | [1] | LEVEL GAUGE BAR | |
| 46 | XKAY-01988 | [1] | PLUG | |
| 33 | XKAY-01901 | [1] | BLOCK | |
| K34. | XKAY-01902 | [2] | O-RING | |
| 35 | XKAY-01890 | [3] | BOLT-WRENCH | |
| 36 | XKAY-00150 | [3] | PLUG | |
| K37. | XKAY-00151 | [3] | O-RING | |
| 38 | XKAY-00140 | [2] | PLUG | |
| 39 | XKAY-00975 | [1] | PLUG | |
| 40 | XKAY-00548 | [1] | PLUG | |
| 41 | XKAY-01903 | [1] | NAME PLATE | NOT USED |
| 41 | XKAY-01891 | [1] | NAME PLATE | |
| 41 | XKAY-02250 | [1] | NAME PLATE | |
| 42 | XKAY-00277 | [2] | RIVET | |
| 43 | XKAY-01219 | [1] | PLUG | |
| *-2. | @ | [1] | SWING REDUCTION GEAR | SEE 4110 |
| K. | XKAY-01904 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [1] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
