| หมวดหมู่: | การติดตั้งปั๊ม | รุ่นเครื่องจักร: | EC480E EC480EHR PL4809E |
|---|---|---|---|
| แอปพลิเคชัน: | เครื่องขุด | ชื่อผลิตภัณฑ์: | ปั๊มไฮดรอลิก |
| หมายเลขชิ้นส่วน: | VOE14644493 14644493 | การบรรจุหีบห่อ: | กล่องส่งออกมาตรฐาน |
| เน้น: | EC480E hydraulic pump,excavator hydraulic pump spare parts,PL4809E hydraulic pump with warranty |
||

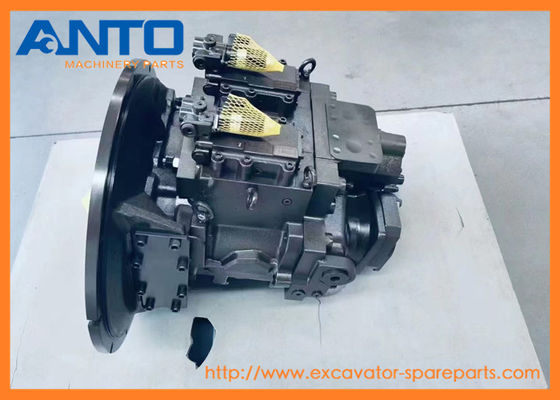

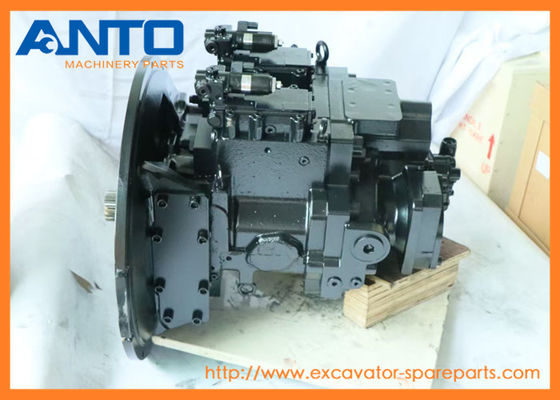

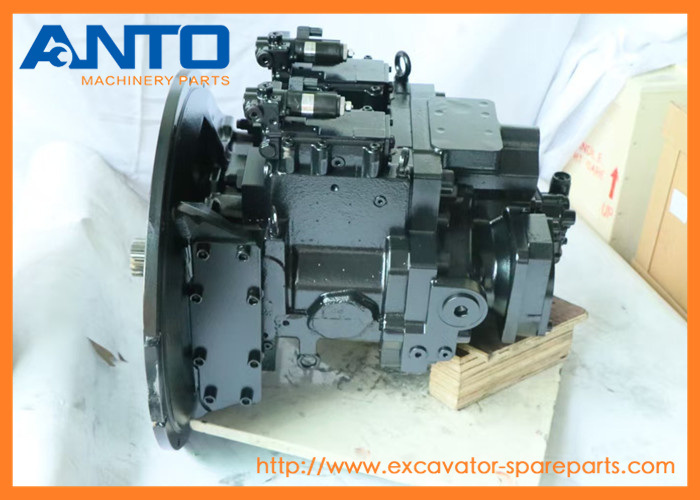

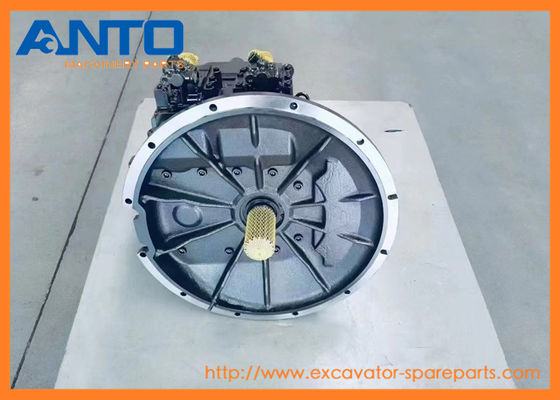

| Name | Hydraulic Pump |
| Parts No | VOE14644493 14644493 |
| Machine Model | EC480E EC480EHR PL4809E |
| Category | V O L V O. Spare Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Key Functions & Working Principle
1.Pressure Generation: The pump’s rotating cylinder block (fitted with pistons) draws hydraulic oil from the reservoir. As the swashplate tilts, pistons reciprocate to compress oil, generating high pressure (up to 35 MPa) for the hydraulic system.
2.Flow Regulation: The swashplate angle adjusts automatically (via a pressure-compensated valve) to vary oil flow. For light loads (e.g., slow bucket movement), the angle shrinks to reduce flow (saving fuel); for heavy loads (e.g., lifting heavy materials), the angle widens to boost flow (maximizing power).
3.System Protection: Integrates a built-in pressure relief valve that diverts excess oil back to the reservoir if pressure exceeds 40 MPa—preventing damage to hoses, cylinders, or valves.
EXCAVATORS EC480E EC480EHR PL4809E Vo.lvo.
| VOE11707966 Hydraulic pump |
| A35D, A40D, T450D |
| VOE11707965 Hydraulic pump |
| A35D, A40D |
| VOE15024641 Hydraulic hose |
| A35E, A35E FS, A40E, A40E FS |
| VOE17438834 Hydraulic cylinder |
| A35D, A35E, A35E FS, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40D, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS, T450D |
| VOE16883242 Hydraulic cylinder |
| A35F/G FS, A40F/G FS, A45G FS |
| VOE16883223 Hydraulic cylinder |
| A35F/G FS, A40F/G FS, A45G FS |
| VOE16883245 Hydraulic valve |
| A35F/G FS, A40F/G FS |
| VOE17458128 Hydraulic pump |
| A25F/G, A25G, A30F/G, A30G, A35F/G, A35G, A40F/G, A40G, A45G |
| VOE17487698 Hydraulic pump |
| A35F/G FS, A40F/G FS, A45G FS |
| VOE17458121 Hydraulic pump |
| A35F/G, A35F/G FS, A35G, A40F/G, A40F/G FS, A40G, A45G, A45G FS |
| VOE17458125 Hydraulic pump |
| A25F/G, A25G, A30F/G, A30G, A35F/G, A35F/G FS, A40F/G, A40F/G FS |
| VOE16899800 Hydraulic fluid tank |
| A35F/G, A35F/G FS, A40F/G, A40F/G FS |
| VOE11117046 Hydraulic pump |
| A25D, A30D |
| VOE17211765 Hydraulic clutch |
| G900 MODELS, G900B, G900C |
| VOE30887 Hydraulic transmission |
| L120C |
| VOE11088049 Hydraulic cylinder |
| L120, L120B |
| VOE17211770 Hydraulic clutch |
| G900 MODELS, G900B, G900C |
| VOE11088537 Hydraulic cylinder |
| L120C, L120C, L120D |
| VOE22500 Hydraulic transmission |
| L120C, L120 |
| VOE11088811 Hydraulic cylinder |
| EL70C |
| VOE11005376 Hydraulic cylinder |
| EL70, EL70C |
| VOE4784769 Hydraulic cylinder |
| ATTACHMENTS |
| VOE30896 Hydraulic transmission |
| L120C, L120C, L150/L150C, L150C, L180/L180C, L180C |
| VOE11088546 Hydraulic cylinder |
| L90C, L90C, L90D |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14644493 | [1] | Hydraulic pump | ||
| 1 | VOE14692340 | [2] | Ring | |
| 2 | VOE14692341 | [2] | Ring | |
| 3 | VOE14600699 | [1] | Seal | |
| 4 | VOE14692349 | [2] | Ring | |
| 5 | VOE14692342 | [1] | O-ring | |
| 6 | VOE14692343 | [2] | O-ring | |
| 7 | VOE14692344 | [4] | O-ring | |
| 8 | VOE14533606 | [4] | O-ring | |
| 9 | VOE14533604 | [2] | O-ring | |
| 10 | VOE14692348 | [1] | O-ring | |
| 11 | VOE14535450 | [1] | O-ring | |
| 12 | VOE14534033 | [1] | O-ring | |
| 13 | VOE14535386 | [1] | O-ring | |
| 14 | SA7223-00690 | [2] | O-ring | |
| 15 | VOE14697653 | [2] | Pump | |
| VOE14713437 | [2] | Sealing kit | ||
| 16 | VOE14659751 | [2] | Valve | |
| VOE14713439 | [2] | Sealing kit | ||
| VOE14714683 | [1] | Gear pump |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
