| Category: | HYUNDAI Excavator Final Drive | Parts name: | Thrust Ring |
|---|---|---|---|
| Parts number: | XKAQ00208 XKAQ-00208 | Models: | R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7 |
| Lead time: | Stock for soon delivery | Warranty: | 6/12 Months |
| เน้น: | HYUNDAI R110-7 final drive thrust ring,excavator final drive thrust ring,XKAQ00208 final drive for HYUNDAI |
||

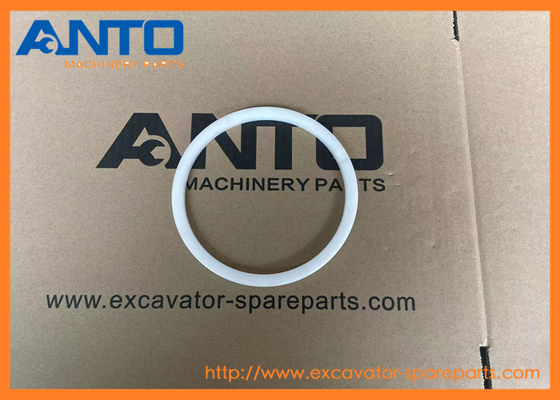

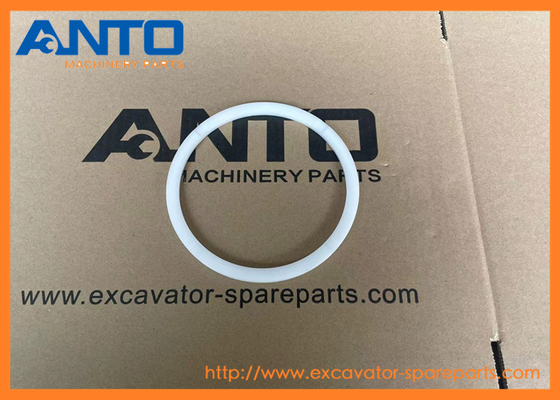

| spare parts name | Thrust Ring |
| Equipment Model | R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7 |
| Parts Category | HYUNDAI Excavator Final Drive |
| Spare parts Condition | Brand new, OEM quality |
| MOQ of order(PCS, SET) | 1 PCS |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
1.Purpose: Maintains axial clearance and preload within the planetary gearset of the reducer.
2.Role: Ensures gears and bearings stay correctly spaced, preventing axial movement, gear misalignment, excessive wear, and vibration—critical for smooth travel operations.
3.Material and Structure: Machined from hardened steel to precise specs for thickness and diameter, capable of handling heavy rotational loads and pressure.
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R215LC7 R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A RC215C7 RC215C7H RD210-7 RD210-7V RD220-7 RD340LC-7
| 3920691 RING-RETAINING |
| 100D-7, 110D-7A, 110D-7E, 110D-9, 35D-9, 50D-9, 80D-9, HDF35A-2, HDF50A, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL730TM7, HL730TM7A, HL740-7, HL740-7A, HL740... |
| S601-030004 RING-RETAINING |
| 110D-7E, 14BRJ-9, 15BRP-7, 15BRP-9, 15D, 15D-9, 15D-9S, 15G, 15G-7A, 15G-7M, 15L, 15L-7A, 15L-7M, 15LC, 15LC-7A, 15LC-7M, 20BRJ-9, 20D-7, 20D-7E, 20DF, 20DT, 20G, 20L, 22D-9, 22D-9E, 22D-9T, 25G-7A, 2... |
| 3920692 RING-RETAINER |
| 180DE, 250D-9, 250DE, HL760-9S, HL770-7, HL770-7A, HL770-9, HL770-9A, HL770-9S, HX330L, HX380L, HX430L, R300LC9S, R305LC7, R320LC7, R320LC7A, R320LC9, R330LC9A, R330LC9S, R360LC7, R360LC7A, R360LC9, R... |
| S602-062004 RING-RETAINING |
| 15D-9, 15D-9S, 16B, 16B-9, 16B-9F, 20D-7, 20D-7E, 20DF, 20DT, 20G, 20L, 22D-9, 22D-9E, 22D-9S, 22D-9T, 25G-7A, 25G-7M, 25GC-7A, 25GC-7M, 25L-7A, 25L-7M, 25LC-7A, 25LC-7M, 25LF, 35D-7, 35DF, 35DS-7, 35... |
| 3904849 RING-RETAINING |
| 33HDLL, 42HDLL, H70, H80, HDF35A-2, HDF50A, HL17C, HL25C, HL720-3C, HL730-7, HL7303C, HL730TM3C, HL730TM7, HL740-3, HL740-3ATM, HL740-7S, HL740-9B, HL740-9S, HL740-9SB, HL740TM-3, HL740TM-3A, HL750, H... |
| 3901706 RING-RETAINING |
| 33HDLL, H70, H80, HL17C, HL720-3C, HL7303C, HL730TM3C, HL740-3, HL740-3ATM, HL740TM-3, HL740TM-3A, HL750, HL750-3, HL750TM3, R130LC, R130LC3, R130W, R130W3, R140LC-7, R140LC9S, R140W7, R140W9S, R160LC... |
| XKAY-00398 RING-SNAP |
| R55-7, R55-7A, R55-9, R55-9A, R55-9S, R60CR-9, R60CR-9A, R80-7, R80-7A, R80CR-9, R80CR-9A, RC60-7, RD80-7 |
| 31YC-25080 RING-CUSHION |
| R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S |
| 31YC-25070 RING-CUSHION |
| R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S |
| Y310-090200 RING-WEAR |
| R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S |
| XJDD-01312 RING-RETAINING |
| R80CR-9, R80CR-9A |
| XJDD-01320 RING-BACK UP |
| R80CR-9, R80CR-9A |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31Q5-42051 | [1] | TRAVEL MOTOR ASSY | |
| *-2. | 31Q6-40121 | [1] | T/REDUCTION GEAR | |
| 1 | XKAQ-00217 | [1] | HOUSING | |
| 2 | XKAQ-00986 | [2] | BEARING-MAIN | |
| 3 | XKAQ-00219 | [1] | SEAL-FLOATING | |
| 4 | XKAQ-00220 | [1] | SHIM | |
| 5 | XKAQ-00221 | [1] | RETAINER | |
| 6 | XKAQ-00222 | [12] | BOLT-HEX | |
| 7 | XKAQ-00223 | [2] | PIN-PARALLEL | |
| 8 | XKAQ-00224 | [1] | GEAR-RING | |
| 9 | XKAQ-00225 | [1] | COUPLING | |
| 10 | XKAQ-00226 | [1] | CARRIER 2 ASSY | |
| 10-1. | XKAQ-00227 | [1] | CARRIER 2 | |
| 10-2. | XKAQ-00228 | [4] | GEAR-PLANET 2 | |
| 10-3. | XKAQ-00229 | [8] | BEARING-NEEDLE 2 | |
| 10-4. | XKAQ-00230 | [8] | WASHER-THRUST | |
| 10-5. | XKAQ-00231 | [4] | PIN 2 | |
| 10-6. | XKAQ-00232 | [4] | PIN-SPRING | |
| 10-7. | XKAQ-00208 | [2] | RING-THRUST | |
| 11 | XKAQ-00233 | [1] | CARRIER ASSY 1 | |
| 11-1. | XKAQ-00234 | [1] | CARRIER 1 | |
| 11-2. | XKAQ-00235 | [1] | GEAR-SUN 2 | |
| 11-3. | XKAQ-00236 | [1] | RING-RETAINING | |
| 11-4. | XKAQ-00237 | [3] | GEAR-PLANET 1 | |
| 11-5. | XKAQ-00238 | [3] | BEARNG-NEEDLE 1 | |
| 11-6. | XKAQ-00239 | [6] | WASHER-THRUST | |
| 11-7. | XKAQ-00240 | [3] | PIN 1 | |
| 11-8. | XKAQ-00241 | [3] | PIN-SPRING | |
| 11-9. | XKAQ-00655 | [3] | PIN-SPRING | |
| 12 | XKAQ-00242 | [1] | GEAR-SUN 1 | |
| 13 | XKAQ-00243 | [1] | COVER | |
| 14 | XKAQ-00214 | [1] | PAD | |
| 15 | XKAQ-00244 | [20] | BOLT-SOCKET | |
| 16 | XKAQ-00245 | [2] | SCREW-HEX SOCKET | |
| 17 | XKAQ-00246 | [3] | PLUG-HYDRAULIC | |
| 18 | XKAQ-00247 | [3] | O-RING | |
| 19 | XKAQ-00989 | [1] | NAME PLATE |
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
